| 加工定制：否 | 品牌：艾科瑞思 | 型号：HX 2200 |
| 自动手动：自动 | 贴片速度：22K UPH粒/小时 | 分辨度：±25μmmm |
| 喂料器数目：- | 电源：220VACV | 重量：800kg |
| 规格：HX 2200 | 是否跨境货源：否 | UPH：22K |
| 压合力：30-250g | 点胶机：武藏点胶机 | 晶圆尺寸：4-8inch |
| 空压机压力：Min.5bar |

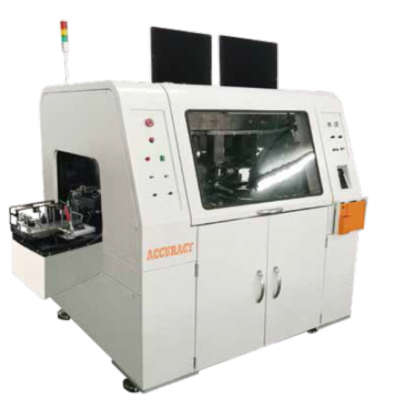

HX 2200（更高性能的8寸IC点胶装片机）
1、 System Capability
XY Placement: ±25μm
Angular Placement: ±1°
UPH: 22K
2、 Material Handling Capability
Die Size: 0.25mm to 5mm(10-200mil)
Leadframe Size: Length:100mm to 300mm
Width: 15mm to 100mm
Thickness:0.1mm to 0.8mm
Loading System: Stack Loader & Magazine Handler
3、 Bond Head
Bond Force: 30-250g
Bond Method: Epoxy
4、 Dispensing System
Dual Time-Pressure Dispensing
Dispensing Controller: Musashi
5、 Wafer Stage
Wafer Size: 4-8inch
6、 Facilities Required
Voltage: 220VAC
Frequency: 50Hz
Compressed Air: Min.5bar
Flow Rate: 250LPM@5bar
Power Consumption: -1500W
7、 Dimension
Weight: 800kg
W×D×H： 2200×1500×1800mm
