| 加工定制：否 | 品牌：艾科瑞思 | 型号：HX 2100 |
| 自动手动：自动 | 贴片速度：20K UPH粒/小时 | 分辨度：±25μmmm |
| 喂料器数目：- | 电源：220 VACV | 重量：800kg |
| 规格： 2200×1500×1800mm | 是否跨境货源：否 | 晶圆尺寸：4-8inch |
| 空压机压力：Min.5bar | 点胶器：武藏点胶器 | 压合力：30-250g |
| 误差：±1° |

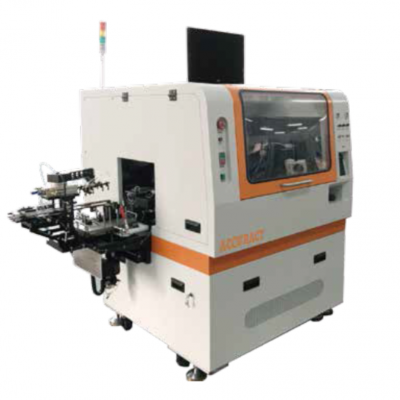

HX 2100/慧芯2100 (8寸IC点胶装片机)
1、 System Capability
XY Placement ： ±25μm
Theta Placement ：±1°
UPH： 20K
2、Material handling Capability
Die Size : 0.25mm to 5mm （10-200mil）
Leadframe Size : Length: 100mm to 270mm
Width:15mm to 0.8mm
Thickness: 0.1mm to 0.8mm
Loading System: Stack Loader & Magazine Handler
3、Bond Head
Bond Force: 30-250g
Bonding Method: Epoxy
4、Dispensing System
Dual Time-Pressure Dispensing
Dispensing Controller: Musashi
5、Wafer Stage
Wafer Size: 4-8inch
6、Facilities Required
Voltage : 220 VAC
Frequency: 50Hz
Compressed Air: Min.5bar
Flow Rale: 250LPM@5bar
Power Consumption: -1500W
7、Dimensions
Weight: 800kg
W×D×H: 2200×1500×1800mm
